New Replacement Radiator for John Deere Tractor 9000 Series RE159211 RE169273 (24159) ***SHIPS FREIGHT***

Applications:

John Deere Tractor Models:

9300 WITH SN: TSN 020890 & AFTER, 9300T, 9400W/ SN 202890 & AFTER, 9400T, 9320, 9320T, 9420, 9420T, 9520, 9520T, 9620, 9620T, 12.5L POWER TECH, 6125 TIER 2 ENGINES

Our Part Number:

24159

Core (Finned area) Dimensions:

38-1/4” x 36-1/4” x 4-1/8”

REPLACES Copper brass version with 38-1/2" tall core  Always confirm by mounting pin distance

Inlet:

2-1/2”

Outlet:

2-1/2”

Overall Dimensions:

46” x 36-3/8” x 7-3/4”

Replaces OEM Part Numbers:

RE159211, RE169273, RE169286, RE592731, 211028

Notes:

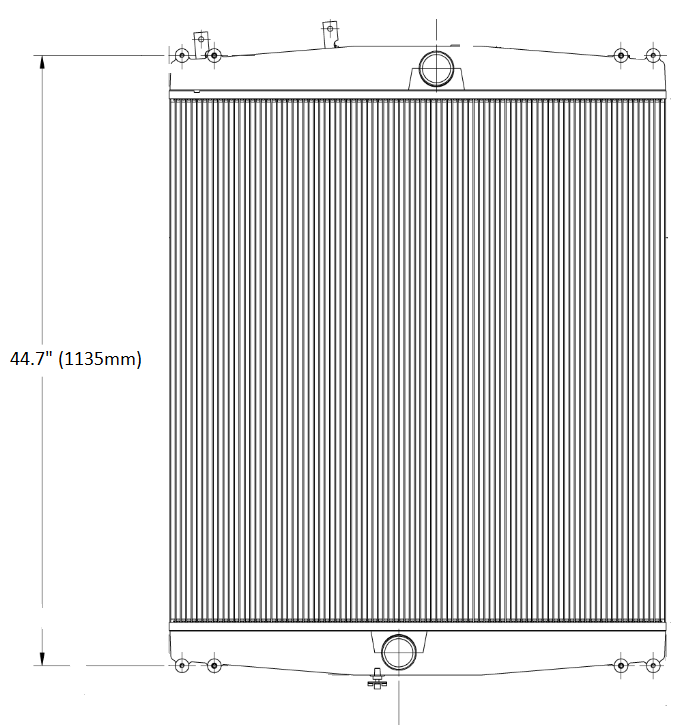

Mounting pins centers from tank to tank  are 44.7" (1135mm) See diagram below

**Check the Distance from the Mounting pins carefully because there are two models that are similar in height

COMPARE TO 24597

This is a all Aluminum High Efficiency model replaces all copper brass models, core height varies from copper brass models because of tank design. Mounting pin distance is the same.

Must re-use the steel side channels

Comes with 2 brackets and bolts to mount onto the top tank can only be used with 2 bracket  and 38 1/4" tall core version
