Hydraulic Oil Cooler for John Deere Planters

Home > Agriculture > Oil Cooler - Agriculture

Made In USA

Hydraulic Oil Cooler John Deere Planters

SKU: 25832

Always reference to your OEM numbers prior to buying! Review all photos and dimensions as there may be multiple variations for your application! Installation should be performed by trained professional! New aftermarket made to fit listed applications.

Out of Stock

ACS WAREHOUSE0

Phoenix0

Price

$381.00 EA

Qty:

Add to Cart

Warranty Information

American Cooling Solutions warrants to the original purchaser that, for a period of one year from the date of purchase, the product will be free from defects in material and workmanship under proper use and conditions. Terms and Conditions can be viewed on the American Cooling Solutions website.

Characteristics
Characteristics

Fit Makes	Universal Fit High Flow Oil Cooler
Fit Models	Universal Fit - Ideal for Planters, Skidsteers, Implements and many other application requiring high flow, high strength, free flowing and the low restriction of steel round tube design coolers
Key Features	Strong Steel Round Tube Aluminum Fin Construction / Round Tube design “stirs” the Oil with Internal Coil / Turbolators without lots of backpressure American Cooling’s HD+ Premium design is Unequaled in its High Efficiency Cooling and Durability / Universal Fit High flow cooler survives where Bar Plate / construction fails in applications with pressure pulsations Equipped with large ¾” free flowing fittings / Includes Optional port for Pressure Spike bypass or Gauge/Sensor / Made in USA
Core Length	11
Core Width	10
Core Depth	1.5
Inlet Port	¾” JIC Flare Male (1-1/16-12 UNF-2A Thread 37° Flare) #12 SAE
Outlet Port	¾” JIC Flare Male (1-1/16-12 UNF-2A Thread 37° Flare) #12 SAE
Notes	Optional port: SAE #5 ORB (1/2-20 UNF-2B Thread) / *Planter hydraulics are known to produce instantaneous spikes of High Pressure and require a pressure relief bypass to safeguard the cooler. To protect the product life and keep the warranty valid we recommend pressure relief device be installed by a qualified hydraulic fluid power specialist on all planter applications

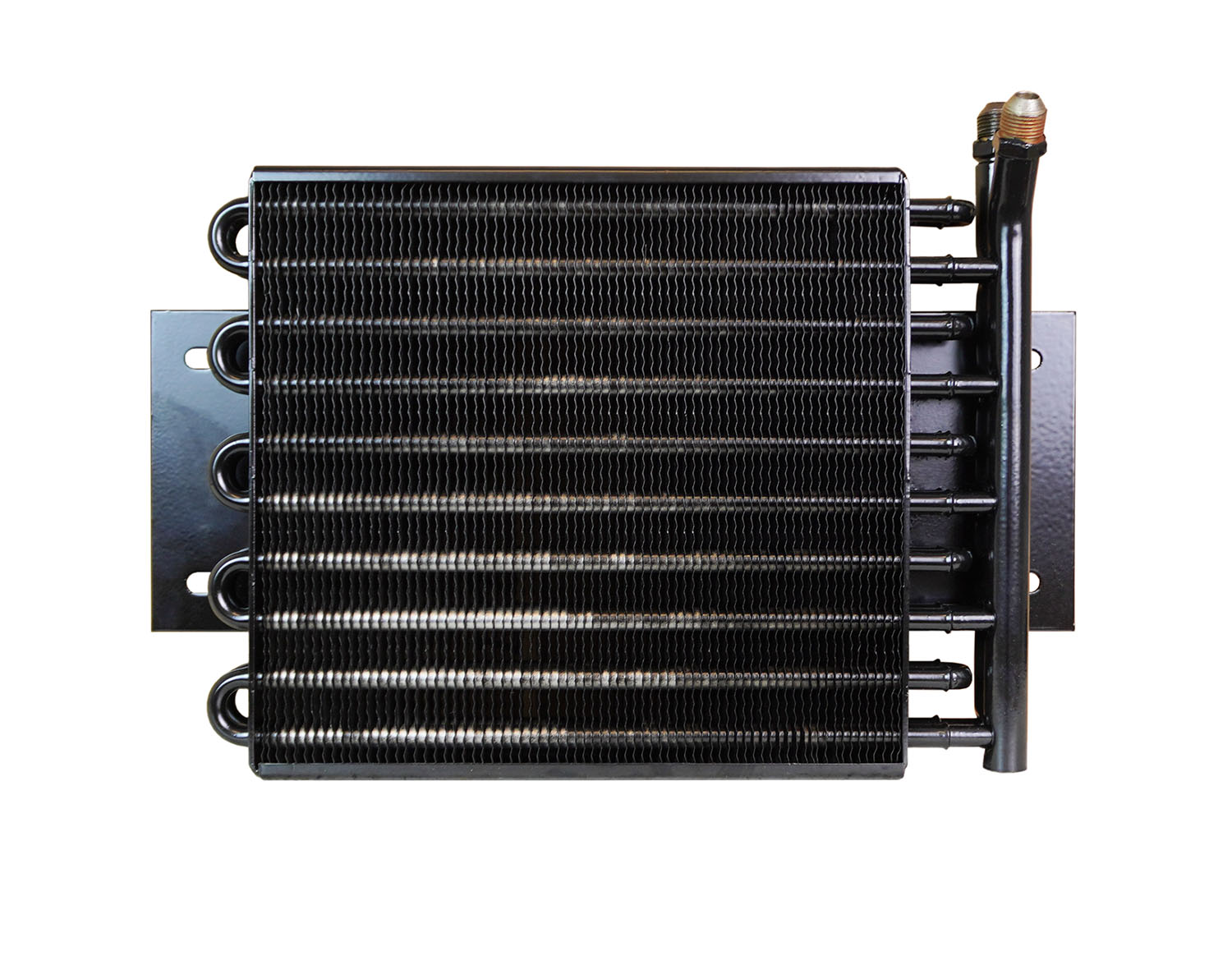

Related Part Numbers	See also part: 20177
